The Safety Layer for Home Charging : Overcurrent Protection in EV Chargers
As electric vehicles (EVs) become mainstream, the reliability and safety of charging infrastructure are under greater scrutiny than ever. One of the most critical yet often overlooked safety features in an EV charger is overcurrent protection. At Piot Solutions Pvt Ltd, we design and manufacture EV charging solutions with multi-layer safety architecture, ensuring uninterrupted performance across residential, commercial, and fleet applications.
What is Overcurrent Protection?
Overcurrent protection is a safety mechanism designed to automatically stop or limit the flow of electricity when current exceeds safe operating limits.
In Piot chargers, this is not just a feature—it is deeply integrated across hardware, firmware, and system design to prevent overheating, damage, and fire risks.
🔍 Types of Overcurrent Conditions
1. Overload Condition
Caused by gradual increase in current beyond the rated capacity over time.
-
- Caused by prolonged high load or multiple devices drawing power
- Leads to overheating of cables and internal components
- Managed through MCBs and intelligent firmware-based current limiting
2. Short Circuit Condition
Sudden surge in current due to direct contact between live conductors.
- Results in extremely high instantaneous current
- Can cause sparks, fire hazards, or severe equipment damage
- Requires instant tripping via MCB or fuse protection
3. Ground Fault / Earth Leakage
Unintended current flow to earth due to insulation failure or moisture.
- Commonly caused by damaged wiring or environmental conditions
- Poses serious electric shock risk to users
- Detected and prevented using RCCB / RCD protectio
Why Overcurrent Protection is Critical
As EV adoption grows, ensuring electrical safety becomes critical. Overcurrent protection plays a vital role in safeguarding the entire charging ecosystem—from the panel board and electrical circuit to the EV charger, vehicle, and end user. A well-designed protection system not only prevents failures but also enhances reliability, performance, and compliance
Overcurrent protection safeguards the entire ecosystem—from panel board to EV battery:
1. Panel Board & Electrical Circuit
The first line of defense begins at the power source. Overcurrent protection ensures that the upstream electrical infrastructure remains safe and stable.
- Prevents damage to wiring and distribution systems
- Avoids overheating and insulation breakdown
- Protects the integrity of the electrical network
2. EV Charger & EV Vehicle
Charging equipment and EV batteries require precise current management for safe operation.
- Prevents overheating and internal component damage
- Reduces risk of charger failure and downtime
- Protects EV batteries, ensuring longevity and consistent performance
3. User SafetY
Safety of users is paramount in any EV charging setup.
- Minimizes risk of fire and hazardous electrical faults
- Protects against electric shock and leakage currents
- Ensures a safe, worry-free charging experience
4. Compliance & Standards
Adhering to safety regulations is essential for both performance and trust.
- Complies with IEC and BIS standards
- Ensures installation and operational safety
- Reinforces reliability through certified protection systems
A robust overcurrent protection strategy is not just a technical requirement—it is a foundation for safe, reliable, and scalable EV charging infrastructure. By protecting every layer of the ecosystem, it ensures long-term performance, user confidence, and regulatory compliance
⚙️ Protection Architecture in Piot EV Chargers
PIOT incorporates a robust three-layer overcurrent protection architecture in its EV chargers for enhanced safety and reliability.
A. Protective Devices on Panel Board
These are essential protective devices installed at the electrical panel to safeguard the entire system:
- MCB (Miniature Circuit Breaker): Instantly trips during overload and short circuit conditions
- Fuses: Provide backup protection during fault scenarios
- RCCB (Residual Current Circuit Breaker): Detects leakage current (earth faults) and disconnects power instantly to prevent electric shock and fire hazards
B. Built-In Safety through Product Architecture & Design
Safety is embedded at the core through thoughtful architecture, design, and component selection:
- Robust Product Architecture: Designed to ensure safe current paths and fault resilience
- Optimized Circuit & PCB Design: Minimizes risk of overheating and electrical stress
- Carefully Selected Components: High-quality, EV-grade components chosen for reliability and protection
- Integrated Protective Hardware: Built-in safety mechanisms at the system level for enhanced durability

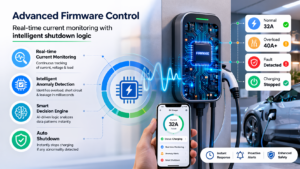

C. Advanced Firmware & Software Controls (Intelligent Layer)
Smart protection adds a dynamic layer of safety and control:
- Real-Time Current Monitoring: Continuously tracks load conditions
- Intelligent Regulation: Automatically adjusts or limits current to prevent overload
- Fault Detection & Response: Ensures rapid action to protect users and equipment
3-Layer Protection Architecture – Real-World Example
7.4 kW EV Charger Scenario
Normal Operation
A 7.4 kW charger typically operates at ~32A under standard conditions, delivering stable and safe charging.
Fault Conditions & Layered Protection Response
Overload Condition (Gradual Rise > 40A)
Excess current builds up over time, leading to heating of cables and internal components.
→ Layer 1 (Panel Board): MCB trips or limits excess current
→ Layer 3 (Firmware): Intelligent current limiting regulates load
Ground Fault / Earth Leakage
Leakage current flows to earth due to insulation failure or moisture, posing shock risk.
→ Layer 1 (Panel Board): RCCB / RCD detects leakage and disconnects supply instantly
Short Circuit Condition
Sudden high current surge due to direct conductor contact, causing sparks or fire hazards.
→ Layer 1 (Panel Board): MCB provides instant trip
→ Layer 1 Backup: Fuse acts as secondary protection
Critical Safety Note
RCCB is not optional—it is essential for protecting human life. Especially in residential and apartment environments, RCCB ensures safe and compliant EV charging.
Final Protection Action
In all fault scenarios, the system responds immediately:
- Charging is stopped instantly
- Overheating and equipment damage are prevented
- Fire and shock risks are minimized
- User safety is ensured
Suggested Checklist for Home EV Chargers
Electrical Protection & Components
-
MCB (Miniature Circuit Breaker) – As per charger rating -
RCCB (Residual Current Circuit Breaker) – Leakage & shock protection -
Electrical Cables – Proper rating and insulation -
Earthing Quality – Low resistance grounding -
Surge Protection Device (SPD) – Protection from voltage spikes
Installation & Configuration
Installation & Configuration
- Accurate Load Assessment: Verify sanctioned load and electrical capacity align with charger rating (e.g., 7.4 kW / 22 kW)
- EV-Grade Connector & Socket: Use certified connectors ( applicable standard) designed for continuous high current
- Weatherproof Installation (IP-Rated): Install chargers in enclosures suitable for indoor/outdoor environments to protect against dust and moisture
Smart & Operational Readiness
- Charger Configuration: Set current limits and charging parameters based on site conditions and electrical infrastructure
- CMS / Mobile App Integration: Enable real-time monitoring, remote control, usage analytics, and fault alerts
- Periodic Inspection & Maintenance: Conduct regular checks on wiring, connectors, protection devices, and system performance
Compliance & Safety
- Compliance with Local & Global Standards: Adhere to IEC / BIS regulations and applicable local electrical norms
- Certified Installation: Ensure installation by qualified and licensed electricians
- Documentation & Labelling: Maintain proper circuit labelling and preserve warranty documents, user manuals, safety guidelines, and service records
Final Note
At Piot Solutions Pvt Ltd, safety is not an add-on—it is built into every layer of our EV charging solutions. Our overcurrent protection architecture ensures reliability, compliance, and peace of mind for every installation.
